Mini-Fit Compatible Connector Series Manufacturer
Mini-Fit compatible connector series pages help buyers compare 4.20mm dual-row power connector options by circuit count, housing, PCB header, crimp terminal, cable assembly and application load before quotation.
4.20mm power connector family for equipment wiring

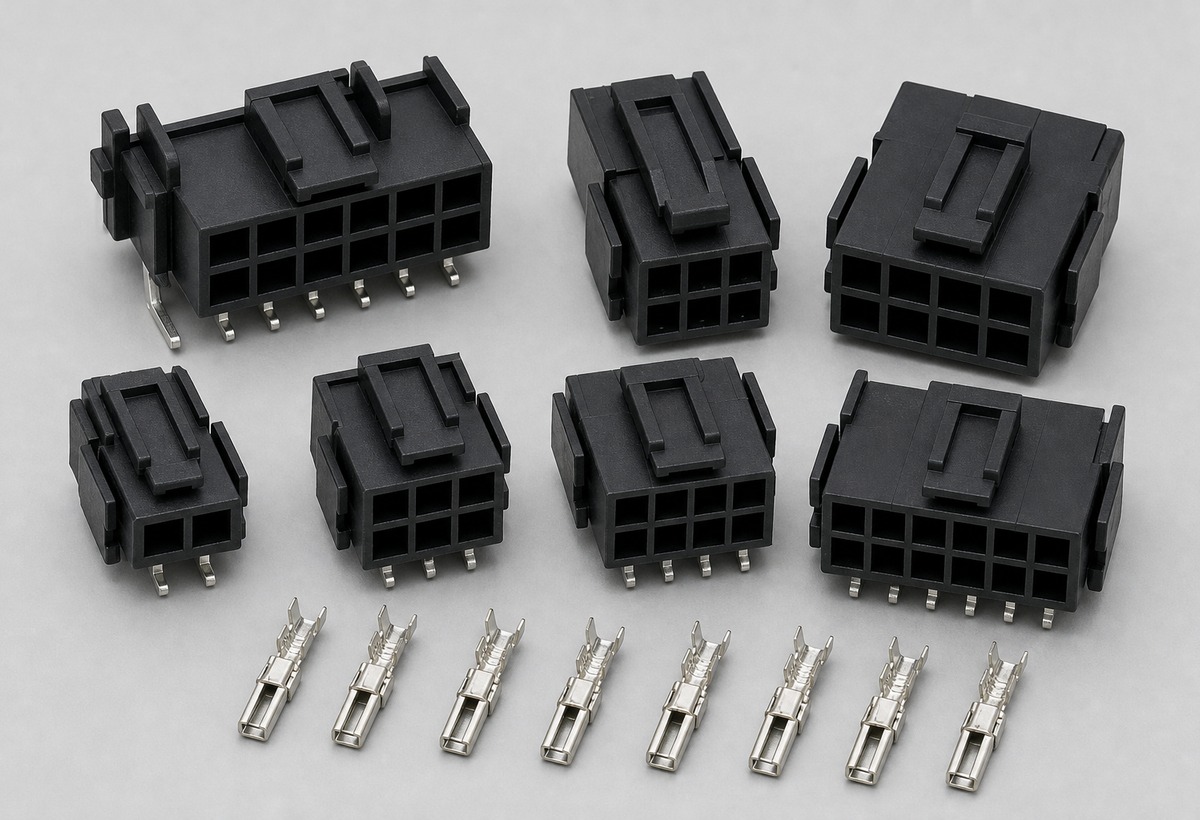

Mini-Fit compatible connectors are commonly selected for power boards, appliance wiring, industrial equipment, battery-related wiring and control assemblies that need a stronger connector body than compact signal series.
Use this page as the first selection layer. Each model page can later expand into dedicated housing, header, terminal, wire gauge, drawing and application pages for long-tail SEO and RFQ conversion.
Selection checkpoints
- Pitch: 4.20mm class
- Common layout: dual-row housing/header
- Typical parts: plug housing, PCB header, crimp terminal
- Confirm: circuit count, latch direction, wire gauge, load
Mini-Fit compatible model pages by circuit count
Choose a model page by circuit count first, then confirm the exact mating parts and drawing before ordering.
4 Circuit Mini-Fit Compatible ConnectorCommon 2×2 layout for appliance, equipment and power-supply harness connections.View model page
6 Circuit Mini-Fit Compatible ConnectorFor medium power and signal combinations where a 2×3 dual-row layout is needed.View model page
8 Circuit Mini-Fit Compatible ConnectorFor eight-circuit power board wiring, equipment modules and harness assemblies.View model page
10 Circuit Mini-Fit Compatible ConnectorFor higher circuit density while keeping the 4.20mm power connector body style.View model page
12 Circuit Mini-Fit Compatible ConnectorFor multi-circuit control panels, power distribution boards and larger harness projects.View model page
What to confirm before choosing Mini-Fit compatible connectors
Mini-Fit compatible connector specification checklist
| Item | Mini-Fit compatible reference | Buyer should confirm |
|---|---|---|
| Pitch class | 4.20mm power connector class | Exact drawing and mating footprint |
| Pin count | 2, 4, 6, 8, 10, 12 circuits | Single-row or dual-row requirement, circuit mapping |
| Parts | Housing, PCB header, crimp terminal, cable assembly | Part combination, terminal plating and packaging |
| Material | Nylon housing, stamped metal terminal | Flame rating, operating temperature and compliance |
| Application | Power board, appliance, equipment harness, control module | Current, voltage, wire gauge, vibration and quantity |
Request Mini-Fit compatible connector quotation
Send circuit count, pitch, sample photo, drawing, wire gauge, quantity, terminal plating and application load. HXHconnector can help match housing, PCB header, crimp terminal and cable assembly options.
Mini-Fit compatible connector FAQ
What is a Mini-Fit compatible connector?
It is a 4.20mm class power connector style used for wire-to-board or wire-to-wire power connections. Confirm exact mating geometry before substitution.
Is Mini-Fit the same as Micro-Fit?
No. Micro-Fit compatible connectors are usually 3.00mm class and smaller, while Mini-Fit compatible connectors are usually 4.20mm class and more robust.
Which pin counts should I prepare for quotation?
Common choices include 2, 4, 6, 8, 10 and 12 circuits. Send the circuit count, drawing, wire gauge and application current.
Can HXHconnector supply housing, header and terminal together?
Yes. HXHconnector can help match plug housing, PCB header, crimp terminal and cable assembly requirements from drawings or samples.
What information affects Mini-Fit connector selection?
Pitch, pin count, row layout, latch direction, polarization, terminal plating, wire gauge, current, voltage and operating temperature all matter.
Can I request a compatible replacement?
Yes. Send the original model number, photo, drawing, or sample. Compatibility must be confirmed by dimensions and mating tests before mass production.
