12 Circuit Mini-Fit Compatible Connector
12 Circuit Mini-Fit Compatible Connector Manufacturer
12 Circuit Mini-Fit Compatible Connector is planned for multi-circuit control panel and power distribution connection. Confirm the 2×6 dual-row layout, housing, PCB header, crimp terminal, wire gauge, current, voltage and drawing before quotation.

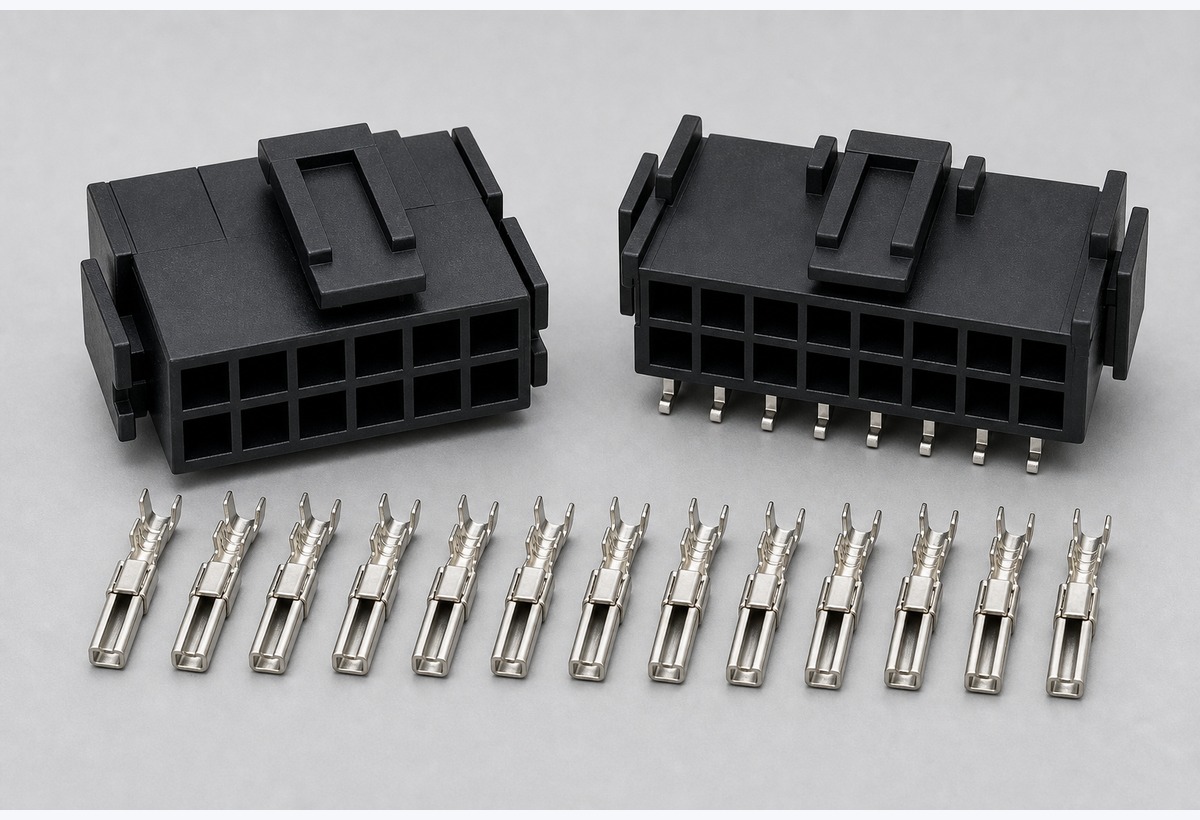

12 Circuit Mini-Fit Compatible Connector overview
This page gives buyers a focused way to compare the 12 circuit option before sending an inquiry. It keeps the product text as real HTML for SEO and GEO while using the image only as a visual reference.
For final selection, confirm the mating drawing, terminal part, wire size, latch direction, board footprint and sample fit.
Quick selection
- Series: Mini-Fit compatible
- Pitch class: 4.20mm
- Layout: 2×6 dual-row layout
- Circuits: 12
- Parts: housing, header, terminal
12 Circuit Mini-Fit Compatible Connector specification checklist
| Item | Reference | Need to confirm |
|---|---|---|
| Model | 12 Circuit Mini-Fit Compatible Connector | Drawing, sample or original model |
| Pitch | 4.20mm class | Exact mating footprint |
| Layout | 2×6 dual-row layout | Cavity coding and latch direction |
| Terminal | Stamped crimp terminal | Wire gauge, plating and pull force |
| Application | Power board or equipment harness | Current, voltage, temperature and quantity |
Request 12 Circuit Mini-Fit Compatible Connector quotation
Send circuit count, sample photo, drawing, wire gauge, quantity and application load. HXHconnector can help match housing, header and terminal before quotation.
12 Circuit Mini-Fit Compatible Connector FAQ
What is a 12 Circuit Mini-Fit Compatible Connector used for?
It is used for multi-circuit control panel and power distribution connection. Confirm the mating geometry and electrical load before ordering.
Is this a 4.20mm Mini-Fit compatible model?
This page is planned around a 4.20mm Mini-Fit compatible power connector style. Exact compatibility must be confirmed by drawing, sample or mating test.
What parts should be matched together?
Confirm plug housing, PCB header, crimp terminal, wire gauge, plating, latch direction and cable assembly requirement.
Can HXHconnector provide samples?
Yes. Send the drawing, sample photo, quantity and application information so HXHconnector can confirm the closest matching parts.
Can this replace another brand model?
Possible, but only after checking dimensions, latch, cavity coding, terminal fit and mating performance.
What information should I send for RFQ?
Send circuit count, pitch, layout, wire gauge, current, voltage, quantity, photos, drawings and target delivery schedule.
