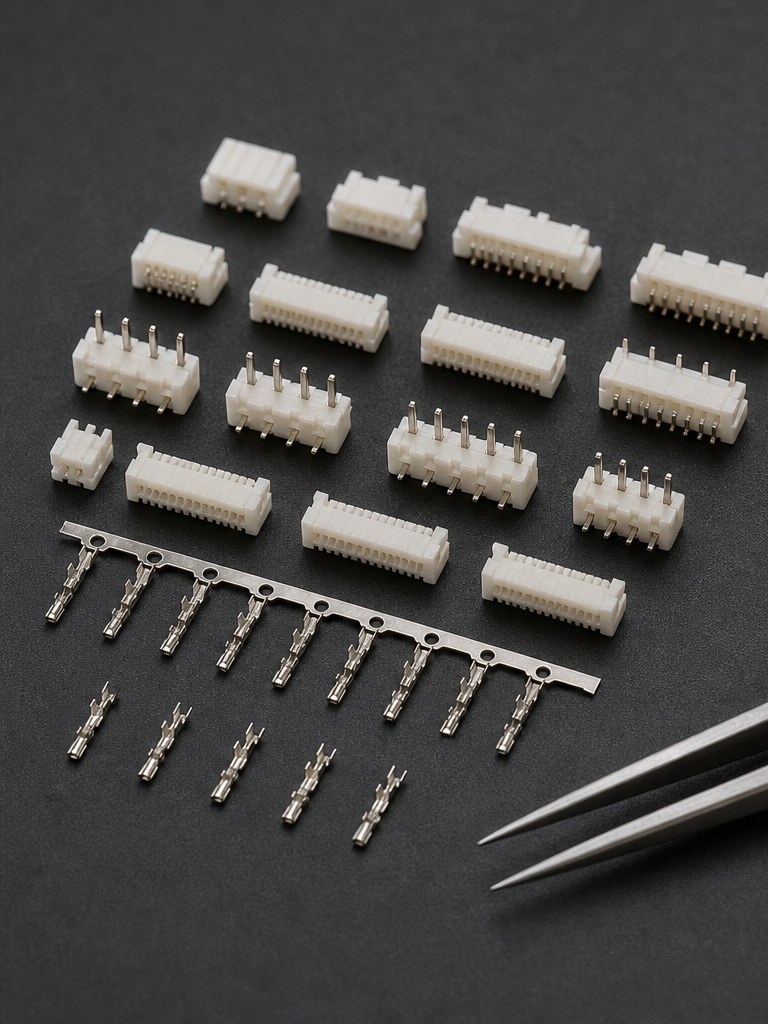

HX12500 connectors for ultra-compact PCB wire connection
The HX12500 connector series is commonly used where a 1.25mm pitch wire-to-board connector is required for very tight PCB space, fine signal wiring, micro battery leads or compact electronic modules. Buyers usually compare pin count, wafer orientation, terminal compatibility, wire range, insertion direction and operating temperature before confirming an HX12500 connector order.
HX12500 Connector Series Specifications
Use this specification table as a purchasing checklist. Final values should be confirmed with HXHconnector drawings, samples and material requirements.
| Item | HX12500 Series Reference | Buyer Confirmation |
|---|---|---|
| Connector type | Wire-to-board connector | Housing, wafer, terminal set |
| Pitch | 1.25mm class | Confirm PCB layout and mating height |
| Pin count | 2, 3, 4, 5, 6 pin options | Confirm circuit quantity and PCB space |
| Mounting direction | Wafer, housing, terminal and patch options | Confirm board direction and cable exit |
| Application | Sensor PCB, portable device, micro battery lead, compact module | Confirm current, voltage and temperature |
HX12500 Connector Pin Count Model Pages
Start with the common HX12500 connector pin counts below. Each model page can later expand into housing, wafer and terminal pages for long-tail SEO traffic.
HX12500 3 Pin ConnectorFor three-circuit PCB connection.
HX12500 4 Pin ConnectorFor sensor boards and compact control modules.
HX12500 5 Pin ConnectorFor compact sensor and control wiring.
HX12500 6 Pin ConnectorFor compact multi-circuit signal wiring.
HX12500 Patch ConnectorFor ultra-compact PCB patch mounting needs.
What to confirm before ordering HX12500 connectors
Applications for HX12500 Connector Series
Sensor modules

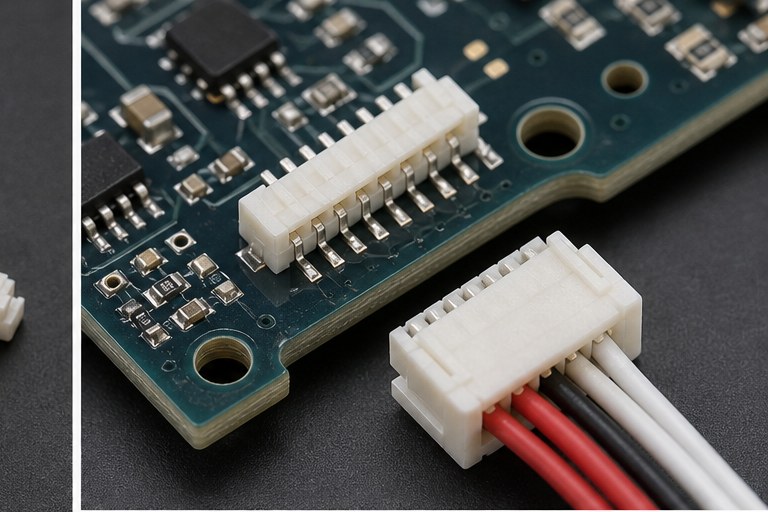

Micro wire-to-board connection for sensor PCBs and compact signal modules.
Portable electronics

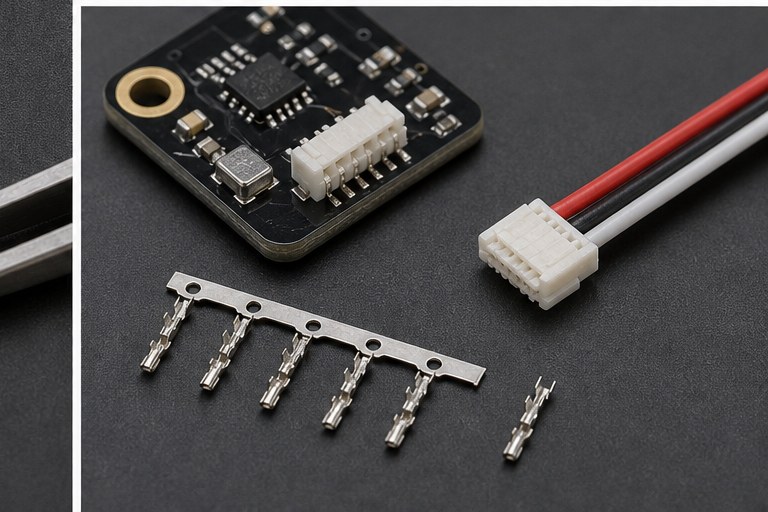

Small device boards, micro cable assemblies and limited-space electronics.
Micro battery leads
Fine wire battery leads and compact power signal connections.
Request a HX12500 connector quote
Send the HX12500 connector pin count, housing or wafer requirement, terminal type, wire gauge, sample photo, drawing, application and annual demand. HXHconnector can help confirm matching parts before quotation.
HX12500 RFQ checklist
HX12500 Connector FAQ
Click each question to expand the answer. These interactions also help buyers compare HX12500 connector requirements before sending an inquiry.
What is a HX12500 connector series used for?
HX12500 connector series products are commonly used for 1.25mm pitch wire-to-board connection in sensor boards, portable electronics, micro battery leads and compact electronic modules.
How do I choose the right HX12500 connector pin count?
Choose the HX12500 connector pin count according to circuit quantity, PCB space, current load and cable assembly layout. You can start from the pin count model section and confirm details with drawings or samples.
Can HXHconnector supply HX12500 housing, wafer and terminal together?
Yes. HXHconnector can support matching HX12500 connector housing, wafer and terminal requirements. For faster confirmation, send photos, model numbers, wire gauge and PCB mounting direction through the RFQ form.
Is the HX12500 connector suitable for appliance and industrial applications?
HX12500 connector series products are commonly selected for very small PCB assemblies. Final selection should confirm current, voltage, temperature, housing material, terminal plating, wire range and equipment environment.
