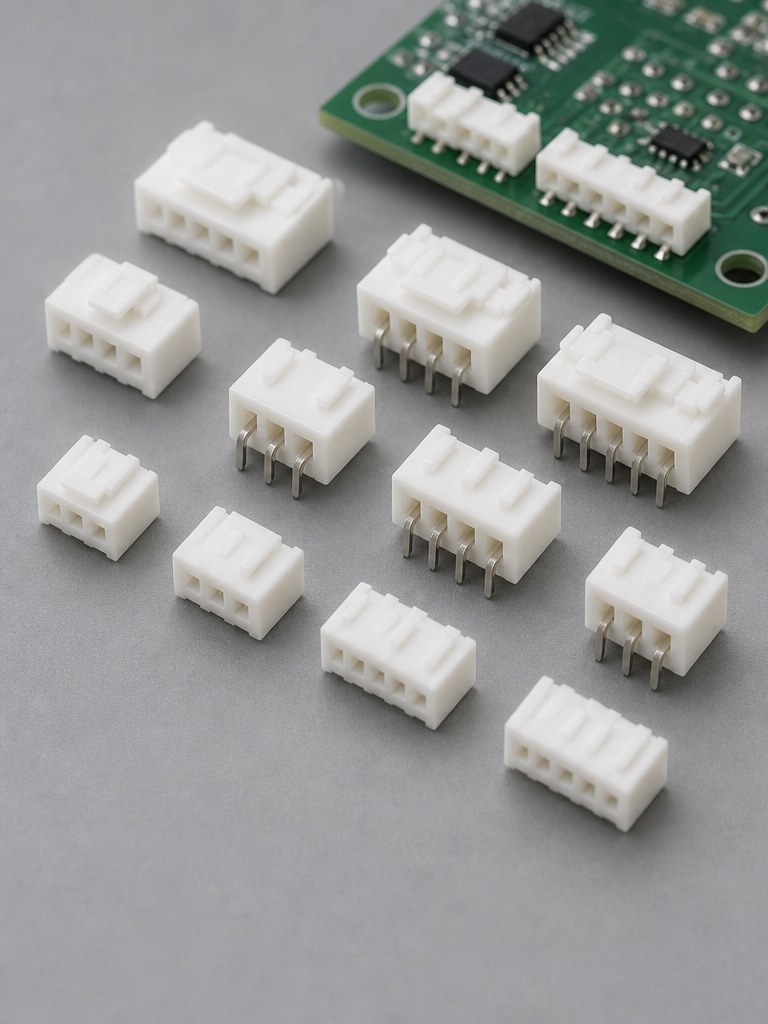

XH connectors for compact PCB wire connection
The XH connector series is commonly used where a 2.54mm pitch wire-to-board connector is required for compact PCB space, stable signal or low-current power connection, secure mating and practical assembly. Buyers usually compare pin count, wafer orientation, terminal compatibility, current rating, wire range and operating temperature before confirming an XH connector order.
XH Connector Series Specifications
Use this specification table as a purchasing checklist. Final values should be confirmed with HXHconnector drawings, samples and material requirements.
| Item | XH Series Reference | Buyer Confirmation |
|---|---|---|
| Connector type | Wire-to-board connector | Housing, wafer, terminal set |
| Pitch | 2.54mm class | Confirm PCB layout and mating height |
| Pin count | 2, 3, 4, 5, 6, 7, 8, 10 pin options | Confirm circuit quantity and PCB space |

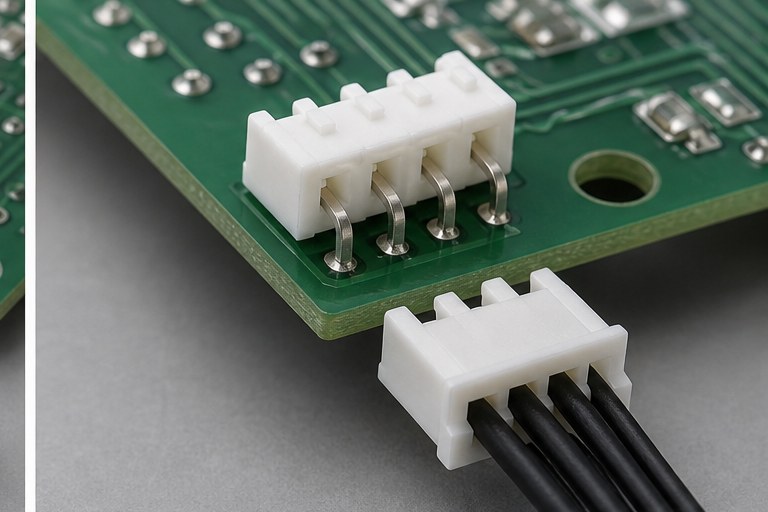

| Mounting direction | Straight or right angle wafer options | Confirm vertical or horizontal wiring path |
| Application | Power supply, appliance, industrial control, LED equipment | Confirm current, voltage and temperature |

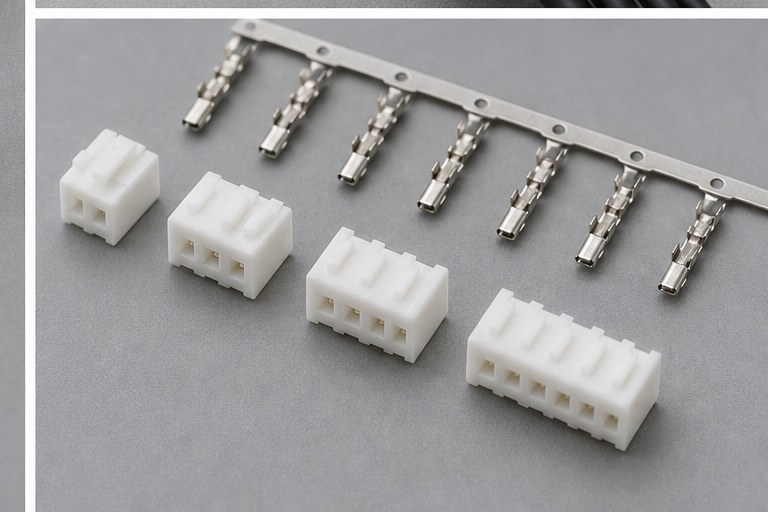

XH Connector Pin Count Model Pages
Start with the common XH connector pin counts below. Each model page can later expand into housing, wafer and terminal pages for long-tail SEO traffic.
XH 3 Pin ConnectorFor three-circuit PCB connection.
XH 4 Pin ConnectorCommon appliance control board choice.
XH 6 Pin ConnectorFor multi-circuit wiring assemblies.
XH 8 Pin ConnectorFor equipment modules and control panels.
XH 10 Pin ConnectorFor higher circuit density requirements.
What to confirm before ordering XH connectors
Applications for XH Connector Series
Household appliances
Control boards for refrigerators, air conditioners, washing machines and kitchen appliances.
Power supply units
PCB wire connection for power conversion modules and low-voltage supply boards.
Industrial equipment
Control cabinets, automation modules, equipment wiring and machine control boards.
Request an XH connector quote
Send the XH connector pin count, housing or wafer requirement, terminal type, wire gauge, sample photo, drawing, application and annual demand. HXHconnector can help confirm matching parts before quotation.
XH RFQ checklist
XH Connector FAQ
Click each question to expand the answer. These interactions also help buyers compare XH connector requirements before sending an inquiry.
What is an XH connector series used for?
XH connector series products are commonly used for 2.54mm pitch wire-to-board connection in appliance control boards, power supply units, industrial equipment, LED modules and electronic assemblies.
How do I choose the right XH connector pin count?
Choose the XH connector pin count according to circuit quantity, PCB space, current load and cable assembly layout. You can start from the pin count model section and confirm details with drawings or samples.
Can HXHconnector supply XH housing, wafer and terminal together?
Yes. HXHconnector can support matching XH connector housing, wafer and terminal requirements. For faster confirmation, send photos, model numbers, wire gauge and PCB mounting direction through the RFQ form.
Is the XH connector suitable for appliance and industrial applications?
XH connector series products are commonly selected for compact appliance, LED, battery pack and industrial control wiring. Final selection should confirm current, voltage, temperature, housing material, terminal plating and equipment environment.
